Custom exports

As of version 0.4.4 of Wyrm, you can now define custom exports on built DLL’s. Through the profile, you have two options:

  • Create a custom export for launching the main Wyrm payload. Note that this will remove the default export of run. You can specify as many of these as you wish.
  • Create a custom export, with accompanying machine code. This would mostly be useful as an anti-analysis tactic, or to run some custom shellcode (such as starting a loader for something).

If you wish to see the implementation notes on this, check it out on my blog!

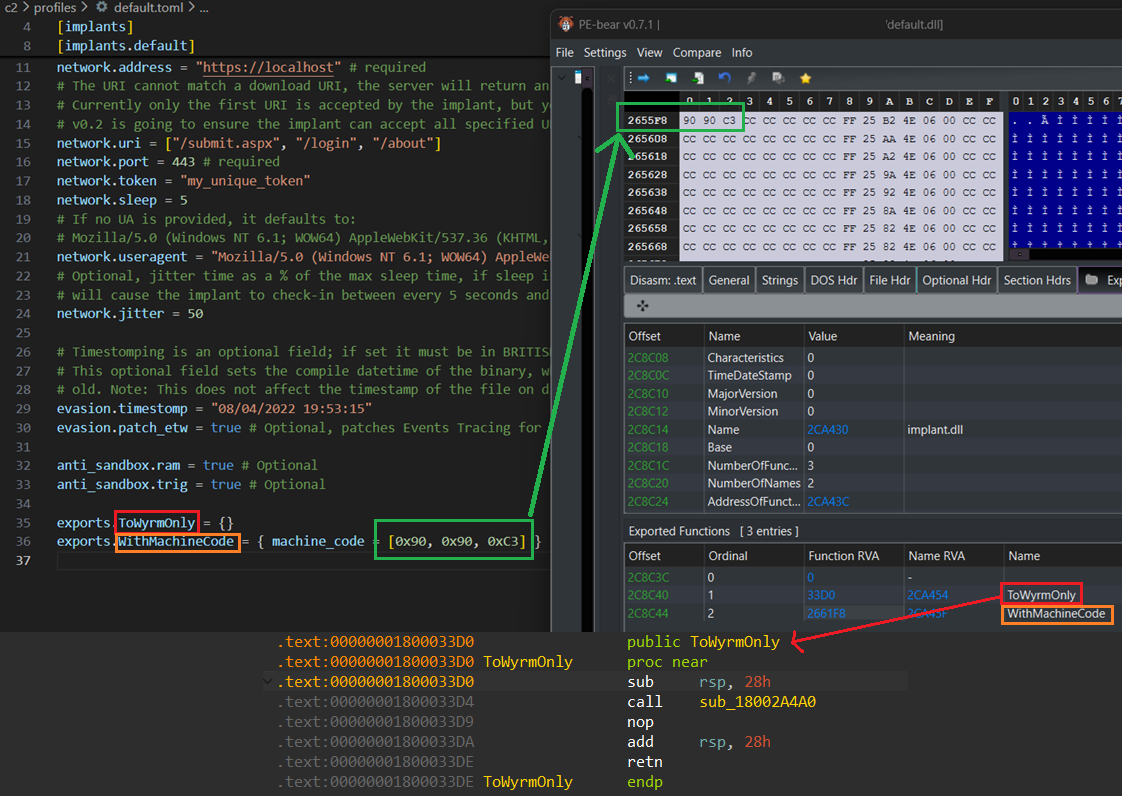

This image here shows the result of doing this, explained below.

Custom DLL Exports

A note on DLLs and exports

DLLs are essentially executables, just without the main entry function. They are mostly (almost exclusively) used to provide programs with additional functionality and capabilities from code that was not provided in the main binary. An example, albeit poor, is if you wrote a math function which adds two numbers - lets say you didn’t want to have to repeat this code in all your programs, you could export that code as a DLL and import it into programs you wish to have add numbers together.

This exported function in a DLL is referred to as an export, and exists in the DLL’s export table. You can view DLL exports with tools like dumpbin, disassemblers, or [PE Bear](https://github.com/hasherezade/pe-bear).

Wyrm builds not only executables and services, but also DLL’s, which opens more covert techniques such as DLL Sideloading which can be constructed using the proxy format found below.

Syntax

If you wish to configure the DLL to use these exports through the GUI, then you modify your profile adding the below into your implant section.

Export only

Each export must start with exports, followed by the name of your export. In the example above, we have two exports on the DLL, ToWyrmOnly which has no associated machine code body, and WithMachineCode which does.

So, if we wanted to add a DLL export to start Wyrm (and in turn, throws out the run export) you would key this as:

exports.WithMachineCode = {}

The = {} is necessary to conform with toml requirements. Doing this style of export will simply launch the entry code of Wyrm when you call that WithMachineCode export (either from Search Order Hijacking, RunDll, or via your own code).

DLL Sideloading Proxy export

Warning: When using sideloading implant console output does not get captured; if you wish to execute dotnet via the dotex command, I recommend spawning Wyrm in a new process. Sideloading is great for persistence and initial access, but has some limitations for full-blown post exploitation.

To use DLL Sideloading in the profile builder, you need to use the below format (provided as an example for version.dll):

exports.proxy.proxy = {"VerQueryValueW" = "proxied", "GetFileVersionInfoSizeW" = "proxied", "GetFileVersionInfoW" = "proxied"}

First, the key of the entry must be exports followed by two subsequent sub-keys of proxy.proxy. Then we build a map of key value pairs, where the key is the proxied DLL Export required by your target, and the value is the name of the proxied DLL.

Taking version.dll; VSCode loads version.dll via a non-hardcoded path to C:\Windows\System32. So, to build the attack we see that VSCode requires the exports from version.dll: VerQueryValueW, GetFileVersionInfoSizeW and GetFileVersionInfoW. To build the attack, we copy version.dll from C:\Windows\System32 into the VSCode folder, and rename it to proxied.dll. Therefore, the value in the above map becomes proxied, as this is the name of the actual DLL Wyrm will redirect to.

You may wish to use DLL proxying in conjunction with the mutex profile option.

Export with machine code

If you wanted to include your own machine code (shellcode) which is associated with the export, you can do so with the following syntax:

exports.WithMachineCode = { machine_code = [0x90, 0x90, 0xC3] }

Here, we write 2 nop instructions, followed by a ret. This is a poor example for real world use. In the real world, this is probably best used to write some decoy code to compile into the DLL to potentially slow down analysis efforts of a blue team you are testing (if they have the maturity for such analysis, or you are emulating an APTs’ TTPs).

One way to do this would be to write some nostd Rust code, or some C code, and compile it to just an .obj file without linking. You could then copy the bytes of your function into the machine_code field above.
